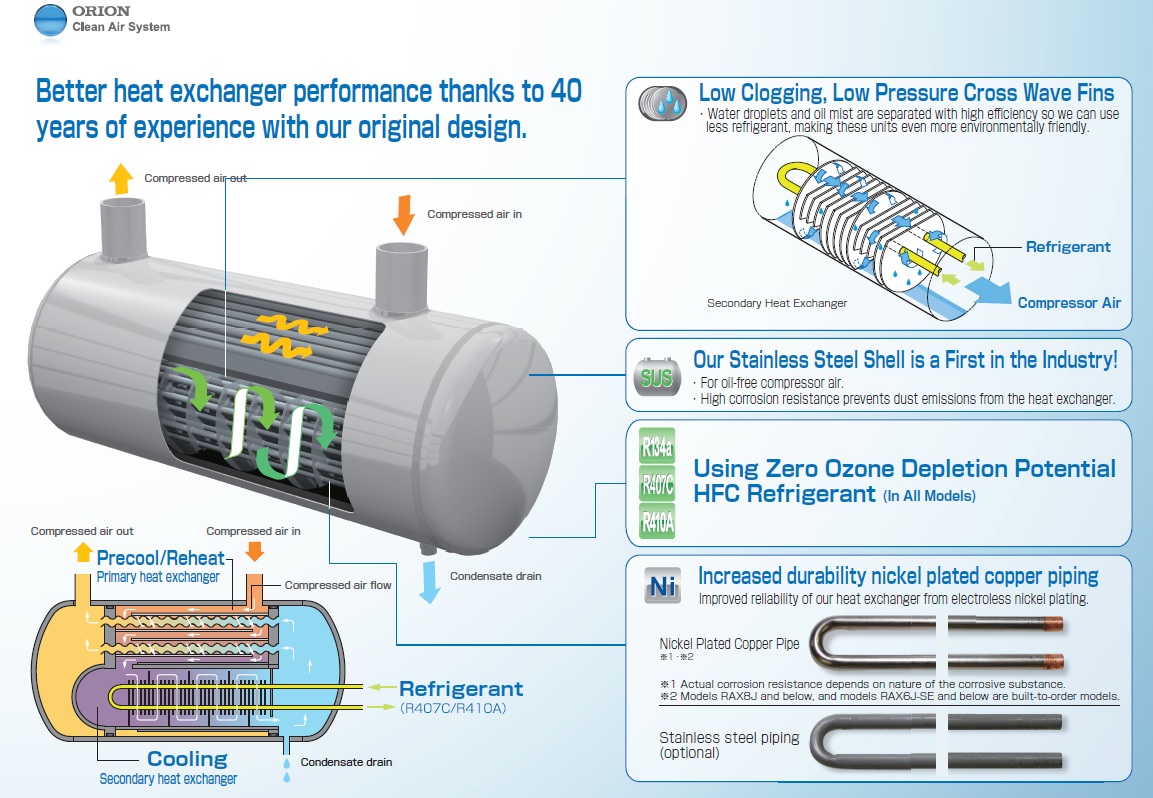

- Product Features

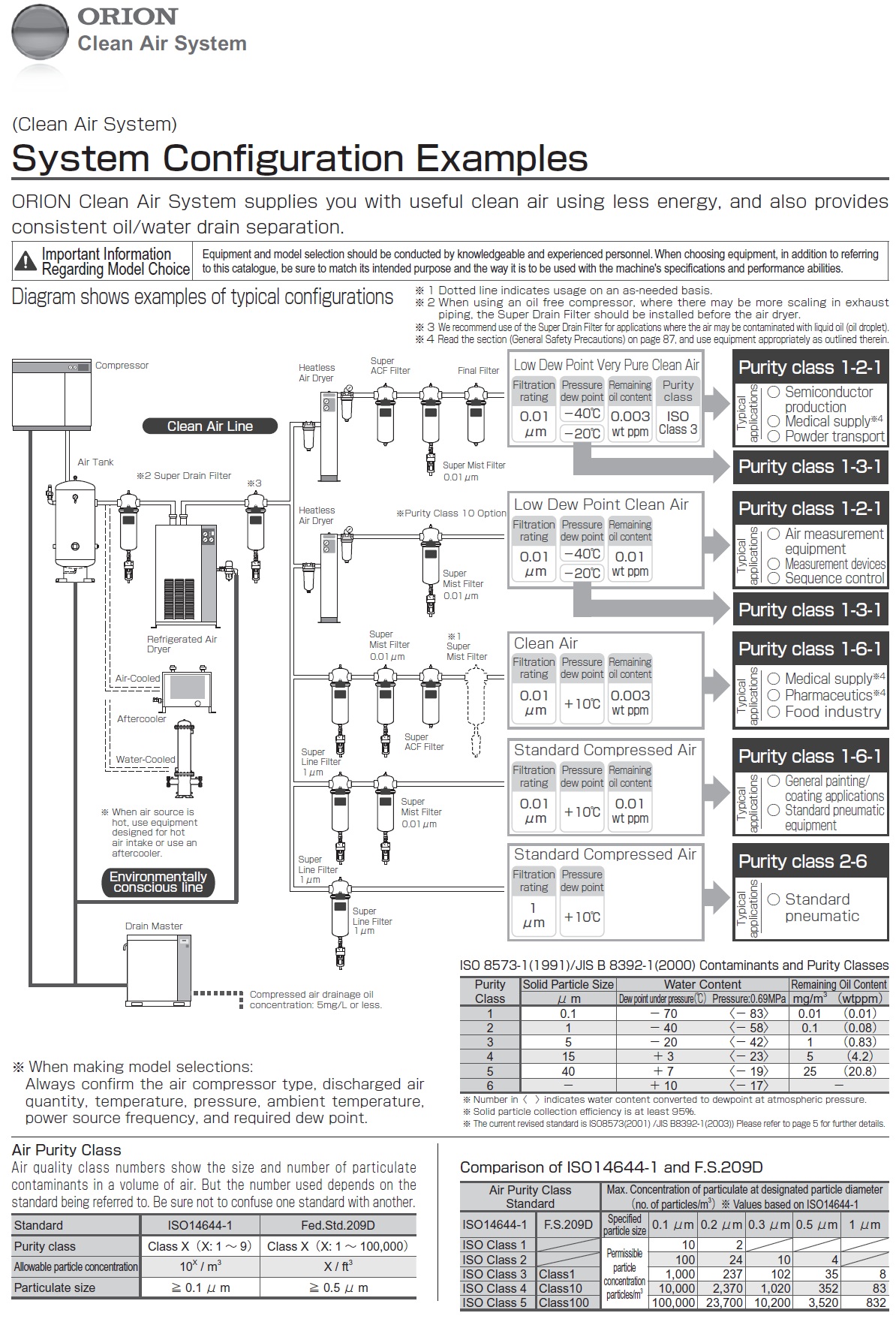

- System Configuration Examples
- Catalog Download
- Manual Download
-

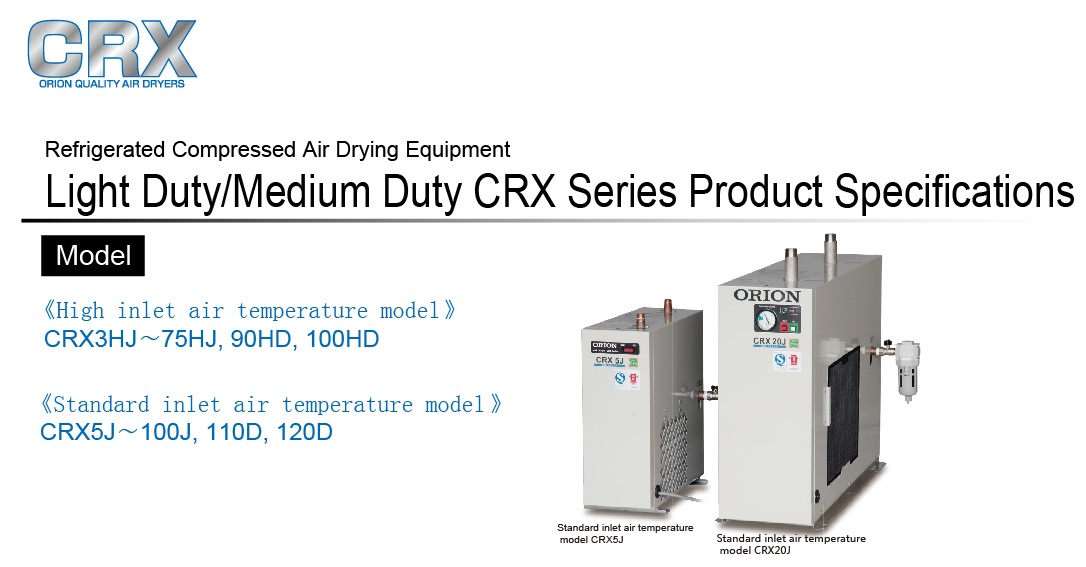

Model CRX3HJ CRX5HJ CRX10HJ CRX20HJ CRX30HJ Air Processing Capacity m3 /min 0.32 0.7 1.1 2.8 4.6 Operating ranges Compressed air pressure MPa 0.2 ～ 0.98 Inlet air temperature ℃ 10 ～ 80 Ambient temperature ℃ 2 ～ 43 Dimensions Height mm 450 600 820 820 960 Width mm 180 240 240 240 300 Dopth mm 480 510 610 610 900 Mass kg 18 26 35 44 83 Auto drain trap Model FD2（Float operated） FD6（Float operated） Drain outlet φ4（internal diameter φ5.7 ? 6.0（external diameter φ8）Use nylon-based tubes） Pipe Connections R1/2 R3/4 R1 R 1.1/2 Refrigerant R134a R410A Electrical specifications Power Source V 1ph 220±10％ 50Hz Power consumption kW 0.27 0.28 0.37 0.74 1.9 Model CRX50HJ CRX75HJ CRX90HD CRX100HD Air Processing Capacity m3 /min 7.6 8.8 10.7 14.9 Operating ranges Compressed air pressure MPa 0.2 ～ 0.98 0.29 ～ 0.98 Inlet air temperature ℃ 10 ～ 80 Ambient temperature ℃ 2 ～ 43 Dimensions Height mm 980 1010 1029 1023 Width mm 300 380 470 592 Dopth mm 990 1050 1054 1229 Mass kg 94 106 147 191 Auto drain trap Model FD6（Float operated） AD5（Disc operated） Drain outlet φ4 Rc1/2 Pipe Connections R 1.1/2 R2 Refrigerant R410A R-407C Electrical specifications Power Source V 1ph 220±10％ 50Hz 3 ph 380±5％ 50Hz Power consumption kW 2.0 2.0 3.0 4.4
Model CRX5J CRX10J CRX20J CRX30J CRX50J Air Processing Capacity m3 /min 0.54 1.0 2.3 4.0 6.4 Operating ranges Compressed air pressure MPa 0.2 ? 0.98 Inlet air temperature ℃ 10 ? 50 Ambient temperature ℃ 2? 43 Dimensions Height mm 450 600 820 820 960 Width mm 180 240 240 240 300 Dopth mm 480 510 610 610 900 Mass kg 18 26 35 44 83 Auto drain trap Model FD2（Float operated） FD6（Float operated） Drain outlet φ4（internal diameter φ5.7 ? 6.0（external diameter φ8）Use nylon-based tubes） Pipe Connections R1/2 R3/4 R1 R 1.1/2 Refrigerant R134a R410A Electrical specifications Power Source V 1ph 220±10％ 50Hz Power consumption kW 0.26 0.27 0.36 0.68 1.7
※ Air processing conditions: 0.69MPa, inlet air temperature: 50℃ , pressure dew point: 10℃ , ambient temperature: 35℃ .※ Processing air capacity is calculated based on compressor intake conditions (atmospheric pressure,32℃、75%.)Model CRX75J CRX100J CRX110D CRX120D Air Processing Capacity m3 /min 9.0 12.0 13.0 19.0 Operating ranges Compressed air pressure MPa 0.2 ～ 0.98 0.29 ? 0.98 Inlet air temperature ℃ 10 ～ 50 Ambient temperature ℃ 2 ～ 43 Dimensions Height mm 980 1010 1029 1023 Width mm 300 380 470 592 Dopth mm 990 1050 1054 1229 Mass kg 94 106 147 191 Auto drain trap Model FD6（Float operated） AD5（Disc operated） Drain outlet φ4 Rc1/2 Pipe Connections R 1.1/2 R2 Refrigerant R410A R407C Electrical specifications Power Source V 1ph 220±10％ 50Hz 3 ph 380±5％ 50Hz Power consumption kW 1.7 1.7 2.6 4.2 -
-
-
-
01 CRX Clean Air System-EN.pdf
-
