Specifications

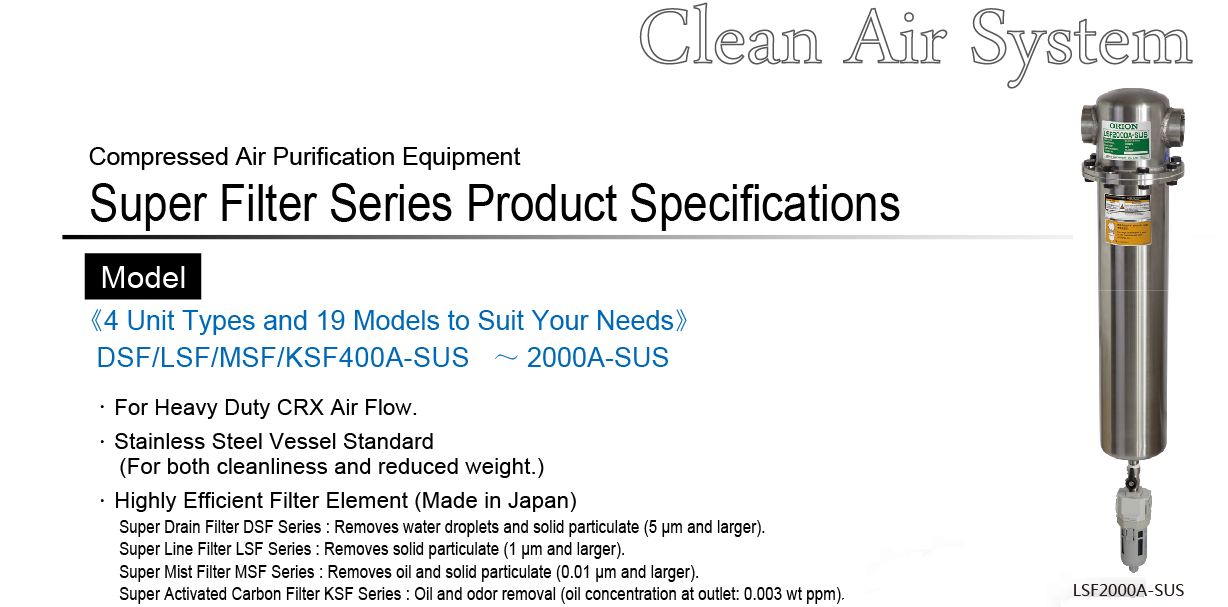

Model	DSF		400A-SUS	700A-SUS	1000A-SUS	1500A-SUS	—
	LSF/MSF/KSF						2000A-SUS
Air processing capacity	at 0.69MPa	? /min	4.2	6.8	10.9	14.0	20.0
	at 0.75MPa	? /min	4.5	7.3	11.7	15.0	21.5
Body and housing			Stainless steel
Operating ranges	Operating ranges	MPa	0.05 ? 0.98
	Inlet air temperature	℃	5? 60
	Ambient temperature	℃	2? 60

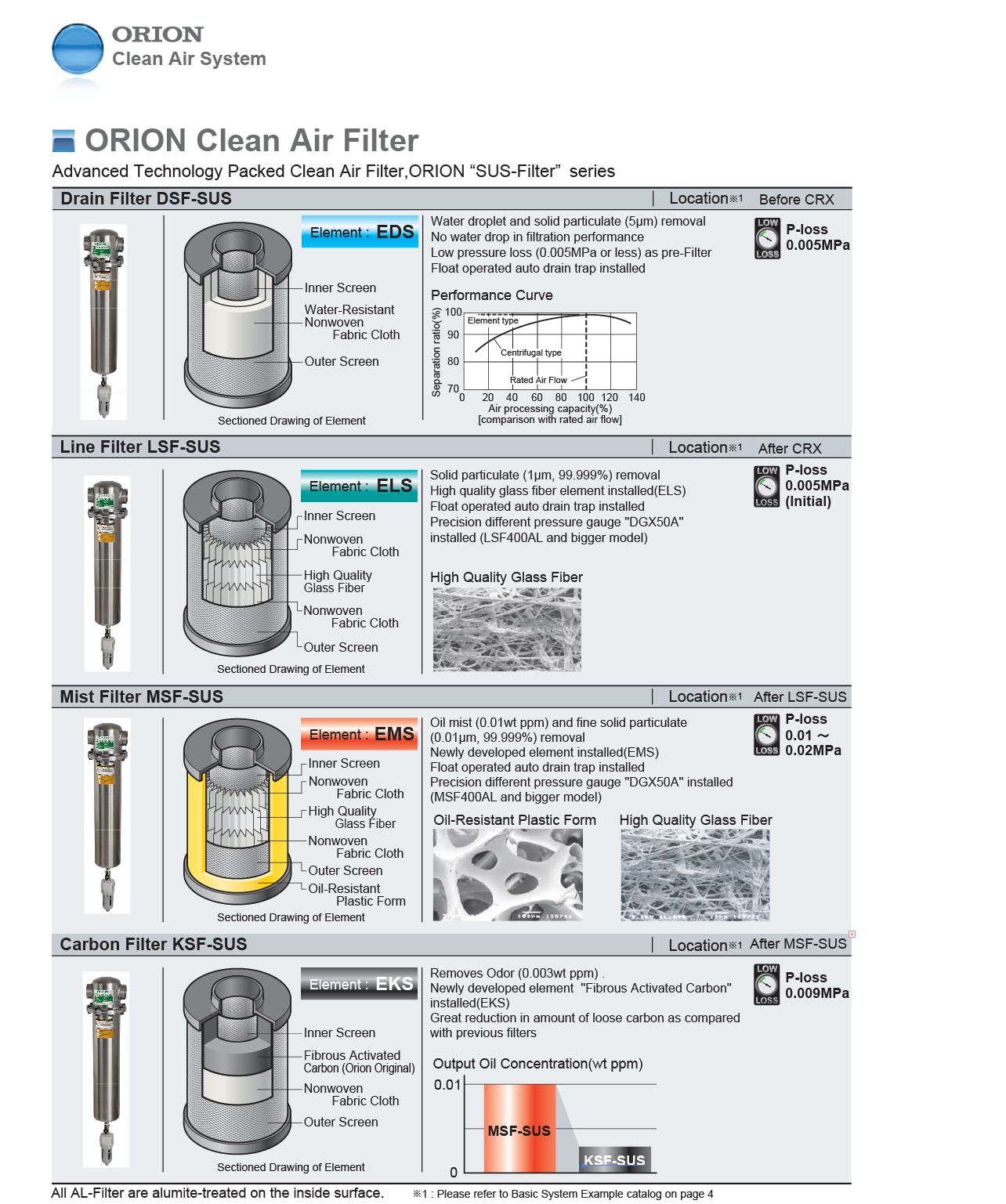

Performance specifications	Filtration		DSF：5μm (Water droplet separation efficiency: 99%)　 LSF：1μm (Filtration efficiency: 99.999%) DSF：5μm (Water droplet separation efficiency: 99%)　 LSF：1μm (Filtration efficiency: 99.999%) MSF：0.01μm(Filtration efficiency: 99.999%)　 KSF：Adsorption by activated carbon fiber
	Output oil concentration	wt ppm	MSF:0.01 KSF:0.003
	Pressure Loss	MPa	DSF: Initial 0.005、LSF: Initial 0.005、MSF: Initial 0.01?Usual 0.02、KSF: Initial 0.009
When to replace filter element			One year or pressure loss 0.02 MPa for DSF, 0.035 MPa for LSF/MSF, whichever comes first.
Main dimensions	Air connection		Rc1	Rc1?		Rc2
	Size（Width）	mm	174
	Size（Length）	mm	532（KSF:370）	599（KSF:429）	709（KSF:539）	789（KSF:619）	946（KSF:776）
	Mass	kg	4.3	4.9	5.2	5.6	6.5
Element	Model : EDS/ELS/EMS/EKS		400	700	1000	1300	2000
	Q'ty		1
Auto drain trap DSF/LSF/MSF ※4		Model	FD2
Filter element change timer			MSF ：Standard　DSF/LSF/KSF ：Option
